Alberen Mirror Meter, Printer and Roofsign

TAXI METER

General Features

• Tariff feature: 3 different tariff accordance with the gradual tariff system
• Design: Unobtrusive mirror and screen design
• Sound installation and appropriate external design: Easy and unaffected by shakes sound installation. Exterior design does not interfere with the opening of the vehicle awnings.
• Printer connection: Connecting to the iTaxi printer, plug, daily and monthly revenue reports can be generated. Showing separately total road and on the rate of conversion driven road facilitates an understanding of remuneration.
• Communication Interface: Compatible with cash registers with financial memory without the need for any software and hardware changes
• Cover Design: Appropriate cover design for sealing electrical connections
• Compatibility: Compatible with POS machine and vehicle tracking devices.
• Easy use: The serial number and license plate information displayed on the screen easily.
• Design feature: One-piece design, including beacon relay
• Preventing loss of signal: Cable and locking socket to prevent signal loss
• Security and reporting: Separate password, recording and reporting for three different drivers.
• Certificates of conformity: MID Compliance with the European measuring instruments directive, CE certified, Compliance with Taximeter OIML R 21 Standards.

Technical Features

• Operating Voltage: 12 VDC (9-16VDC)
• Nominal Current: 200 mA(Max)
• Fuse: 2 AT
• Beacon: 20 W (Max)
• Operating temperature: -25 °C ~ +70 °C
• Speed measuring range: 0 ̴ 255 km/h
• Pulse range: 720 ̴ 20000 pulse/km
• Accuracy: distance ± % 0.2 time ± 2 sc/day+
• Outer body: ABS plastic, chromium-plated mirror, silicone keypad
• Standard: OIML R21
• Input / Output: Communication connector- UART TTL ( printer, Pos machine, vehicle tracking module )
• Sensor: Electronic, Mechanical, Optical
• Dimensions: 26x272x93 mm
• Weight: 260 Gr
• Screen: Led Display, Light Bar

Printer

• Memory: Fiscal: 128 Kbyte RAM: 384 Kbyte
• Operating voltage: 12 VDC (9-16VDC)
• Paper: width: 56 mm( thermal paper ) Length: 16 m
• Printing speed of chips: 10 lines / sec
• Recording capacity: Fiscal: 6500 pcs – RAM: 1500 pcs chip/ 6000 pcs goods and services
• Weight: 230 Gr
• Communication: UART TTL and RS 232
• Dimensions: 140×79×42 mm
• Operating temperature: -25 °C ~ +70 °C
• Outer body: ABS Plastic, polycarbonate glass
• Printer: Thermal printer
• Make: Alberen

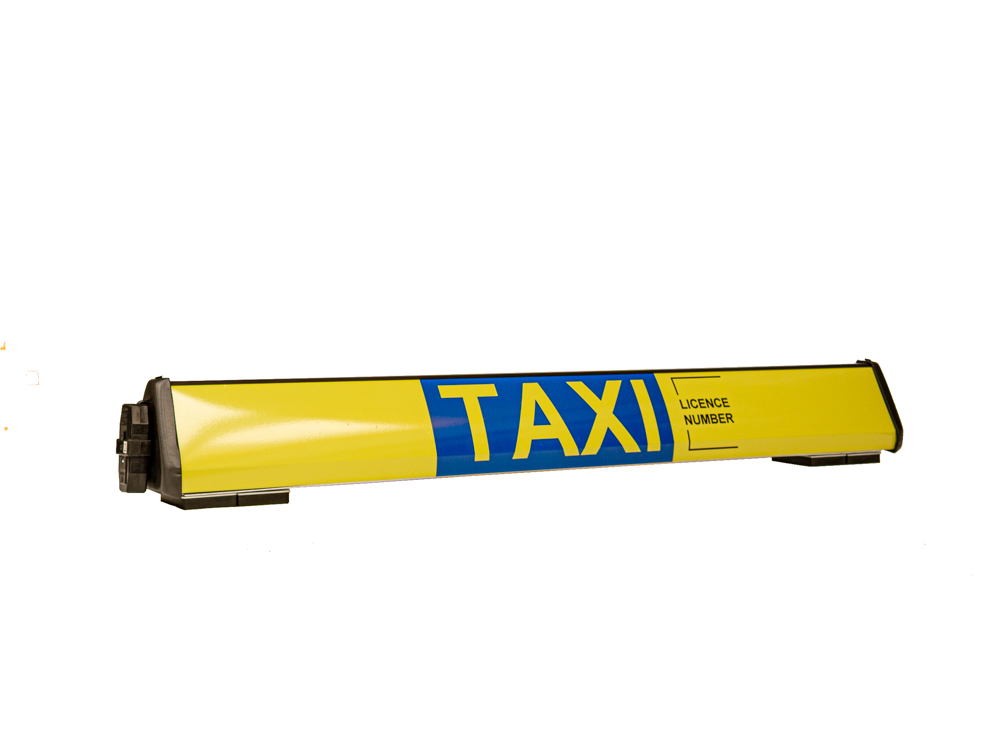

ROOFSIGN

• G&S 900
• full length LED
• made in Ireland

(other roof sign type can be provided on request)
